MF 80 MEGA steel panel formwork with stainless steel sheeting

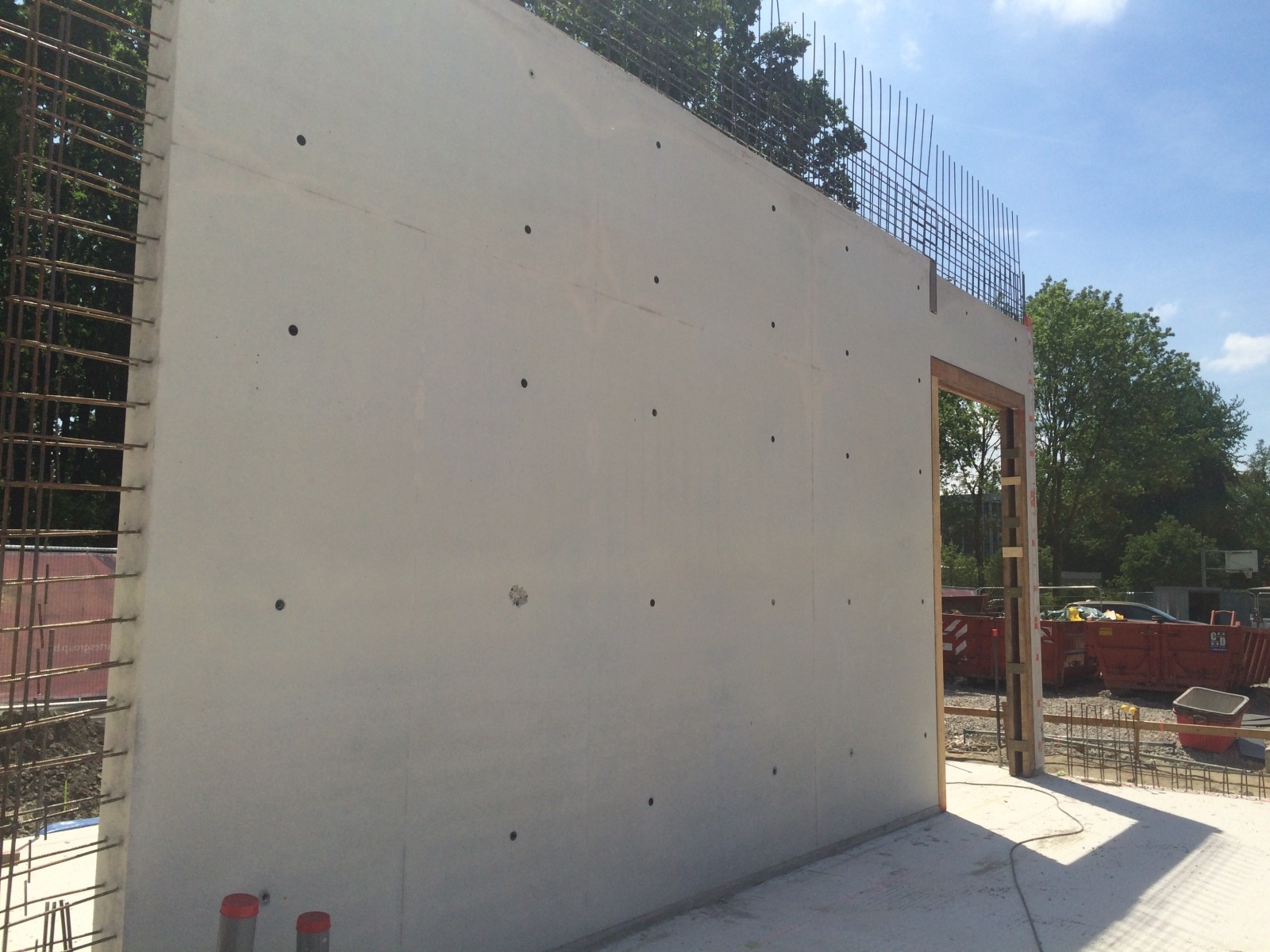

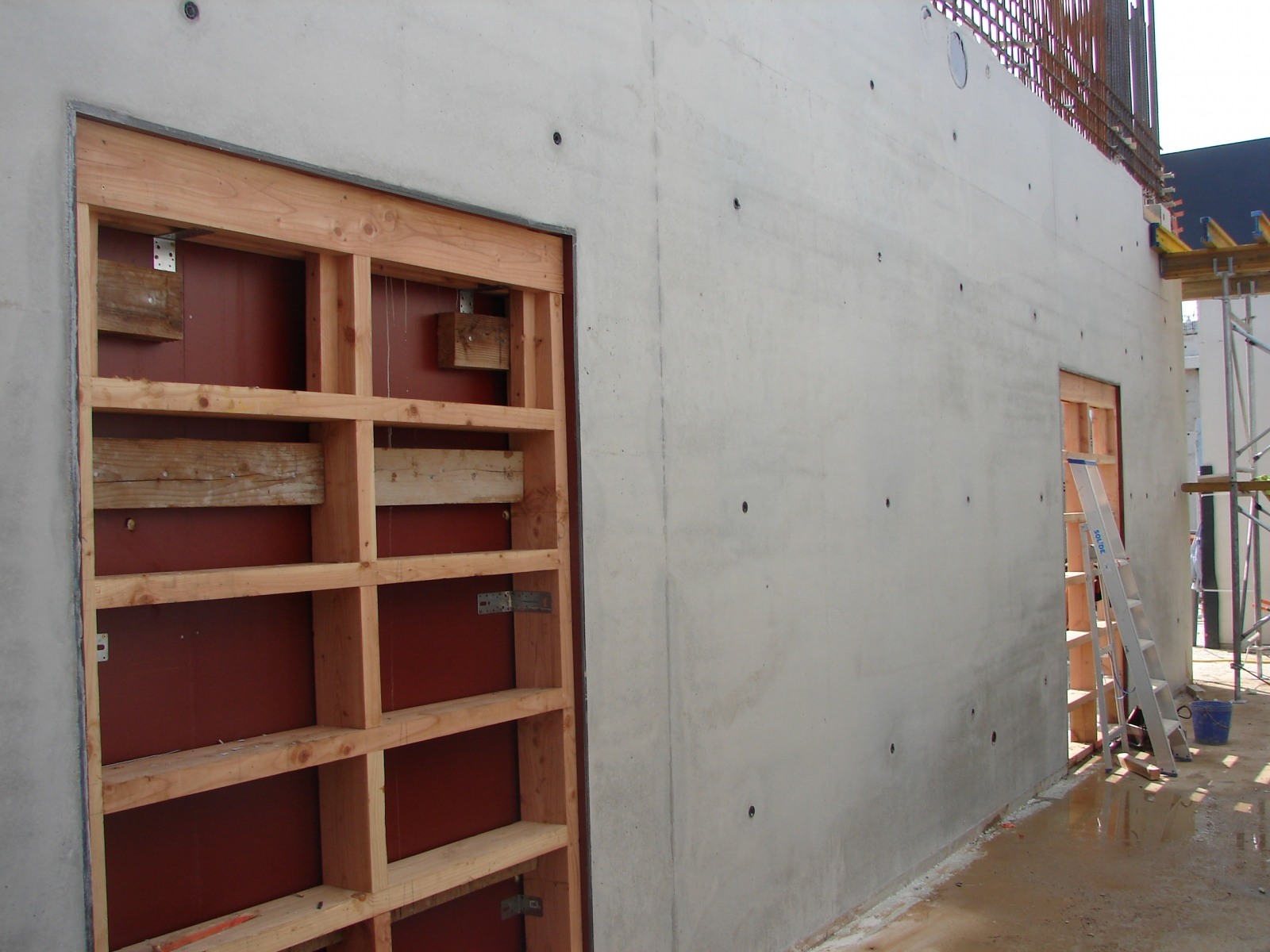

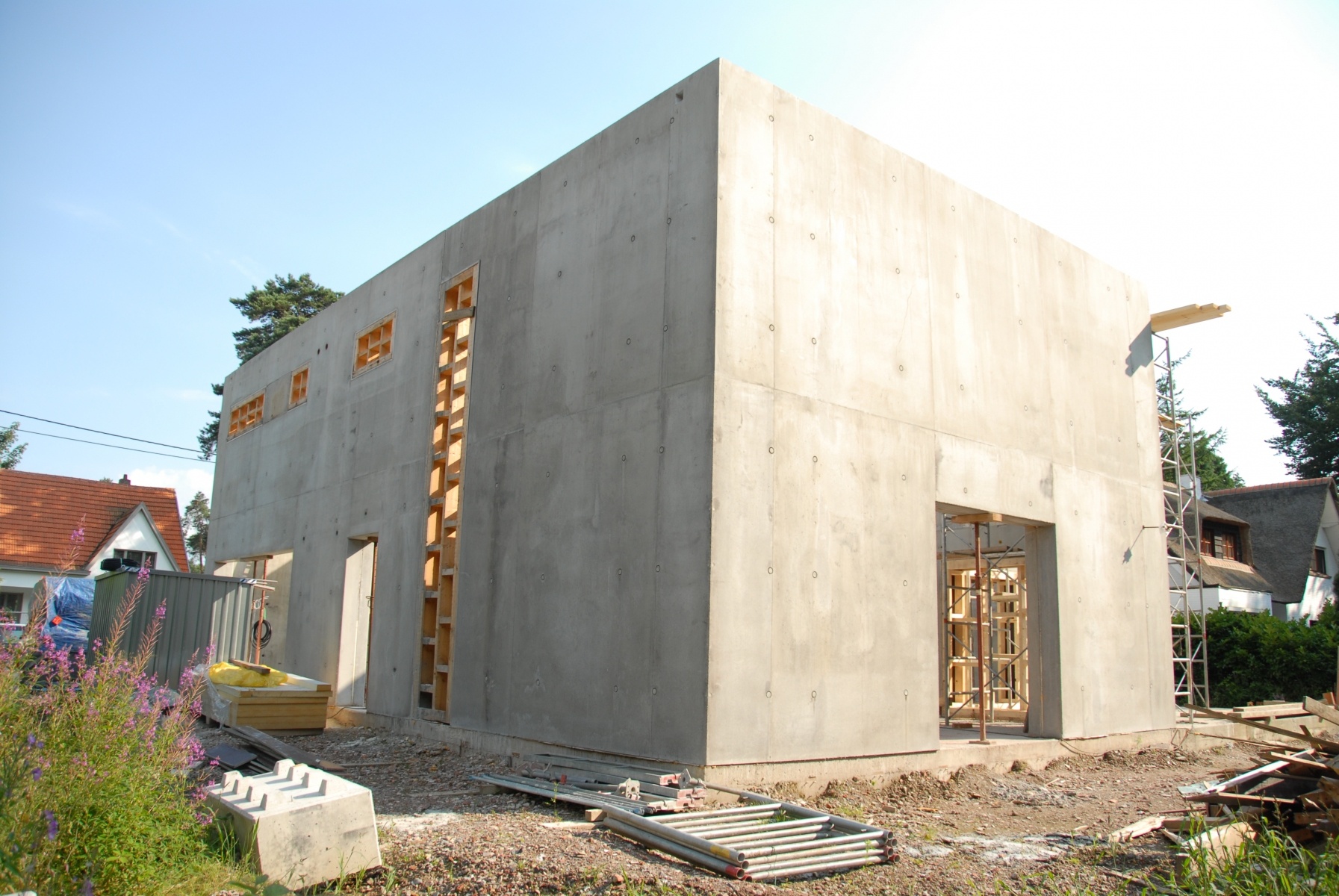

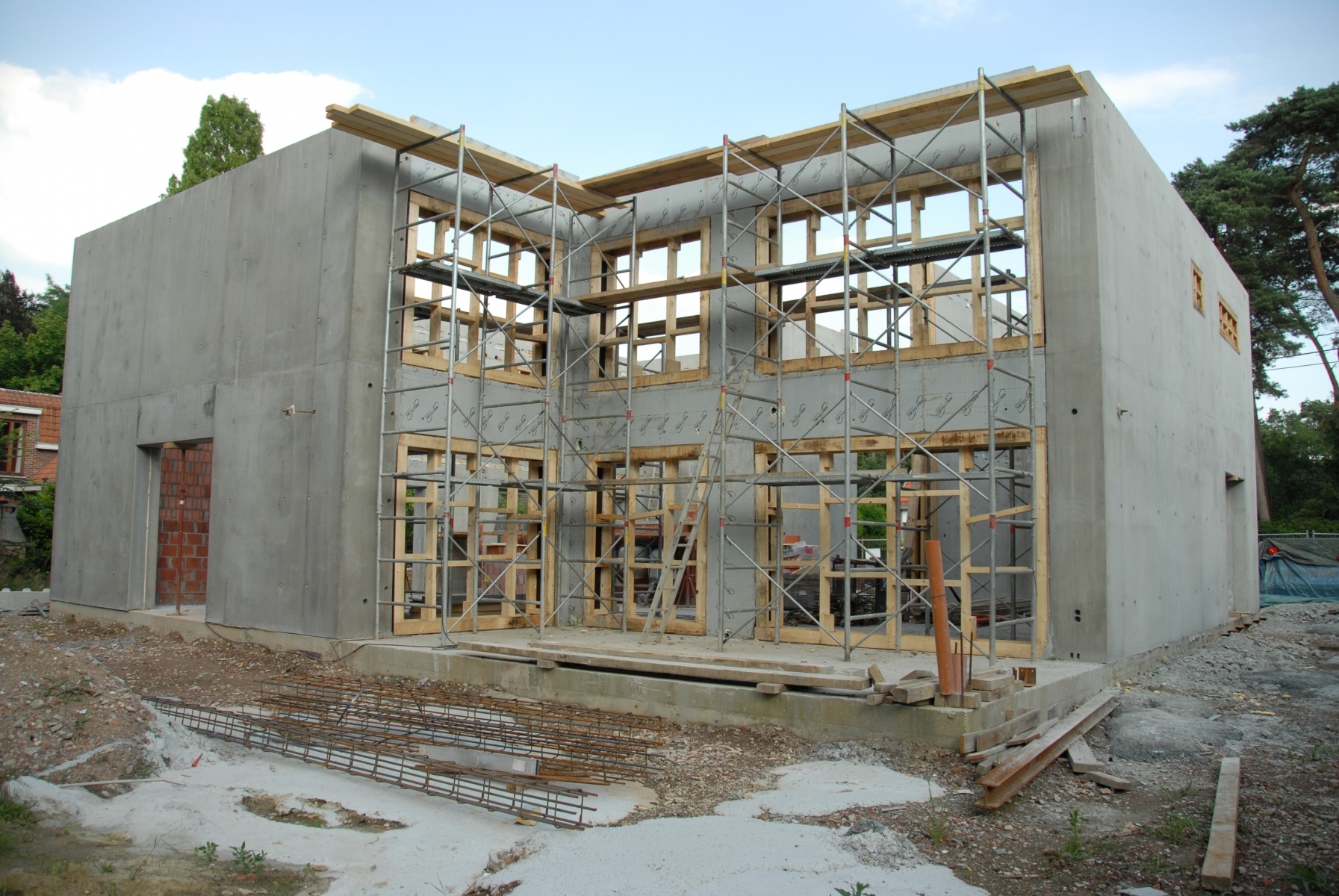

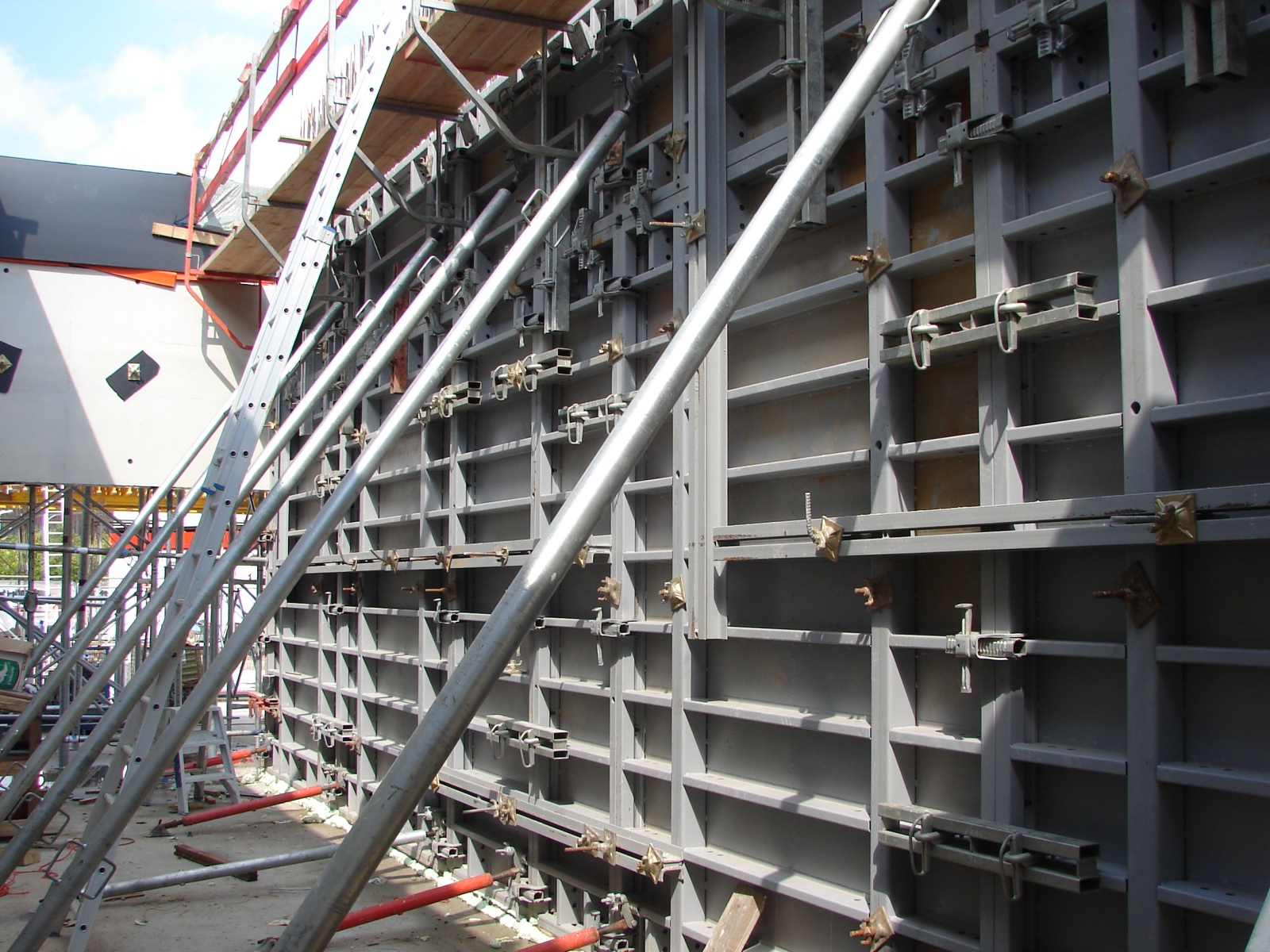

The Mega system is a modular panel formwork, for on-site concrete jobs where a fair-faced finish is required or where extremely high concrete pressures occur
The panels are made of a high-quality painted steel frame and a top quality 5mm stainless steel sheeting. The sheet lies on top of the profiles so the joints between the panels are reduced to a very thin line.
Composition of the Mega panels:
- Painted steel frame with 3,5mm profiles
- 5mm stainless steel sheeting
- Sheets welded from behind
Specifications of the Mega system:
- Modular panel formwork
- Panel thickness 12cm
- Extremely strong and rigid
- Fully compatible with the MF-80 system
- Large size panels
- Limited number of parts
- High pressure resistance, minimum 100kN/m²
- Long life expectancy
- Stainless although magnetic sheets
Mega panel types:
- Identical to and compatible with the Mega system
- 3 heights: 330cm, 270cm and 120cm
- 7 widths: 240cm, 120cm, 90cm, 72cm, 60cm, 30cm and 24cm
Utilization of the Mega formwork:
- Assembly, fitting and applications are similar to the Mega system .
- The Mega panels are fully compatible with the Mega system. MF-80 on one side and Mega on the other side or side by side is possible.
Requirements of the Mega system:
- Rigid, solid, easy and ergonomic
- Designed and calculated according to applicable standards
- In-house production, controlled and certified
