Conflex circular wall formwork

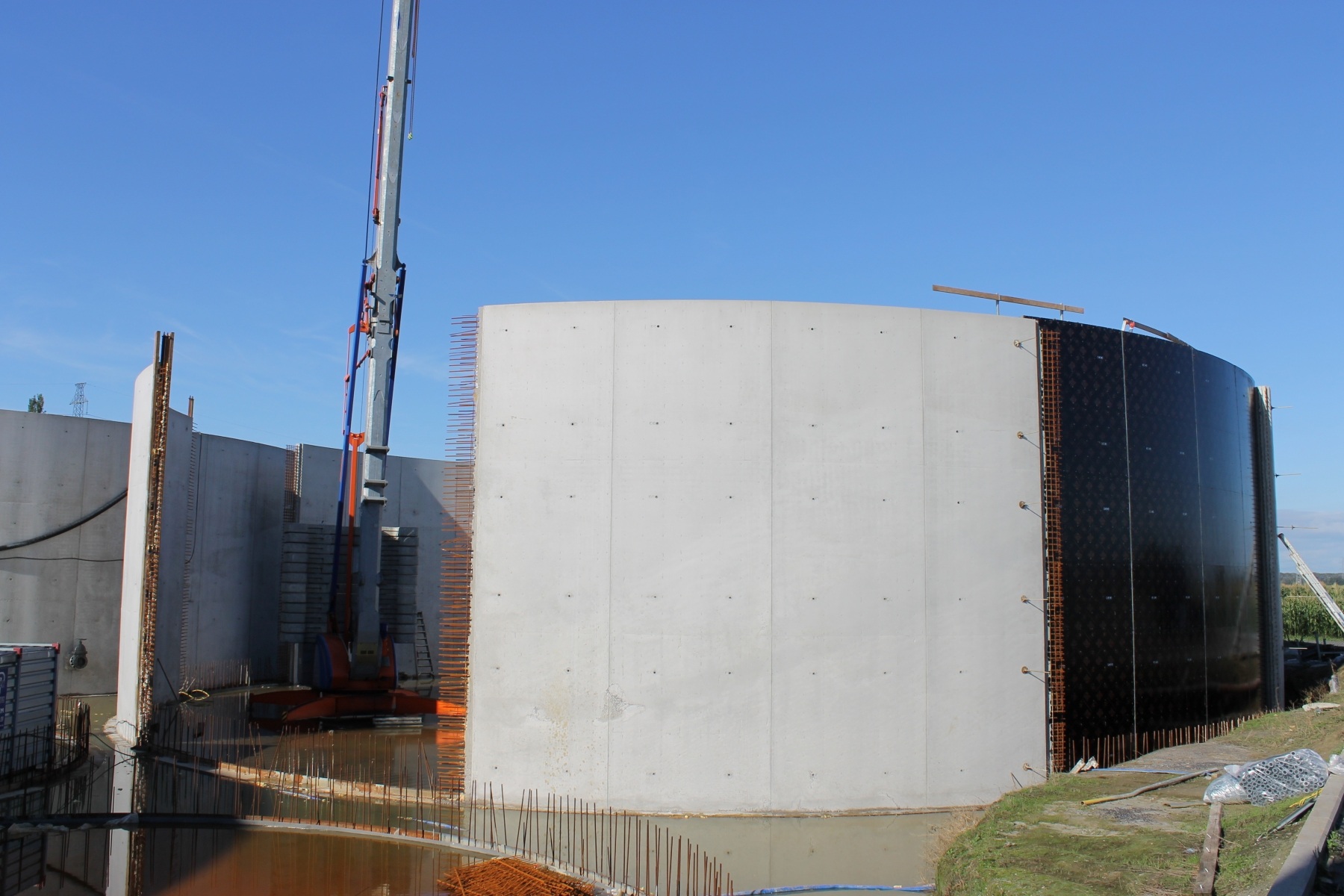

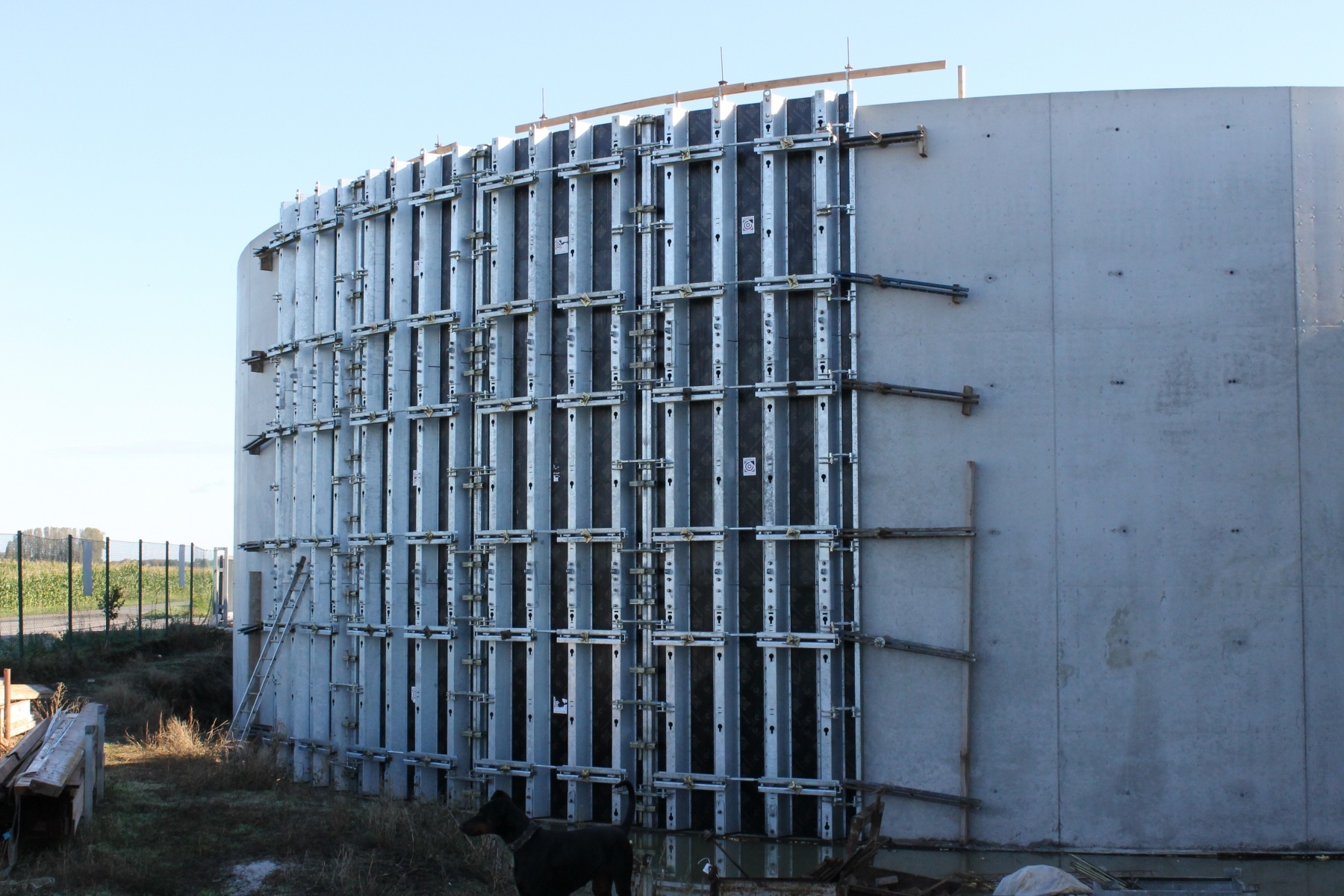

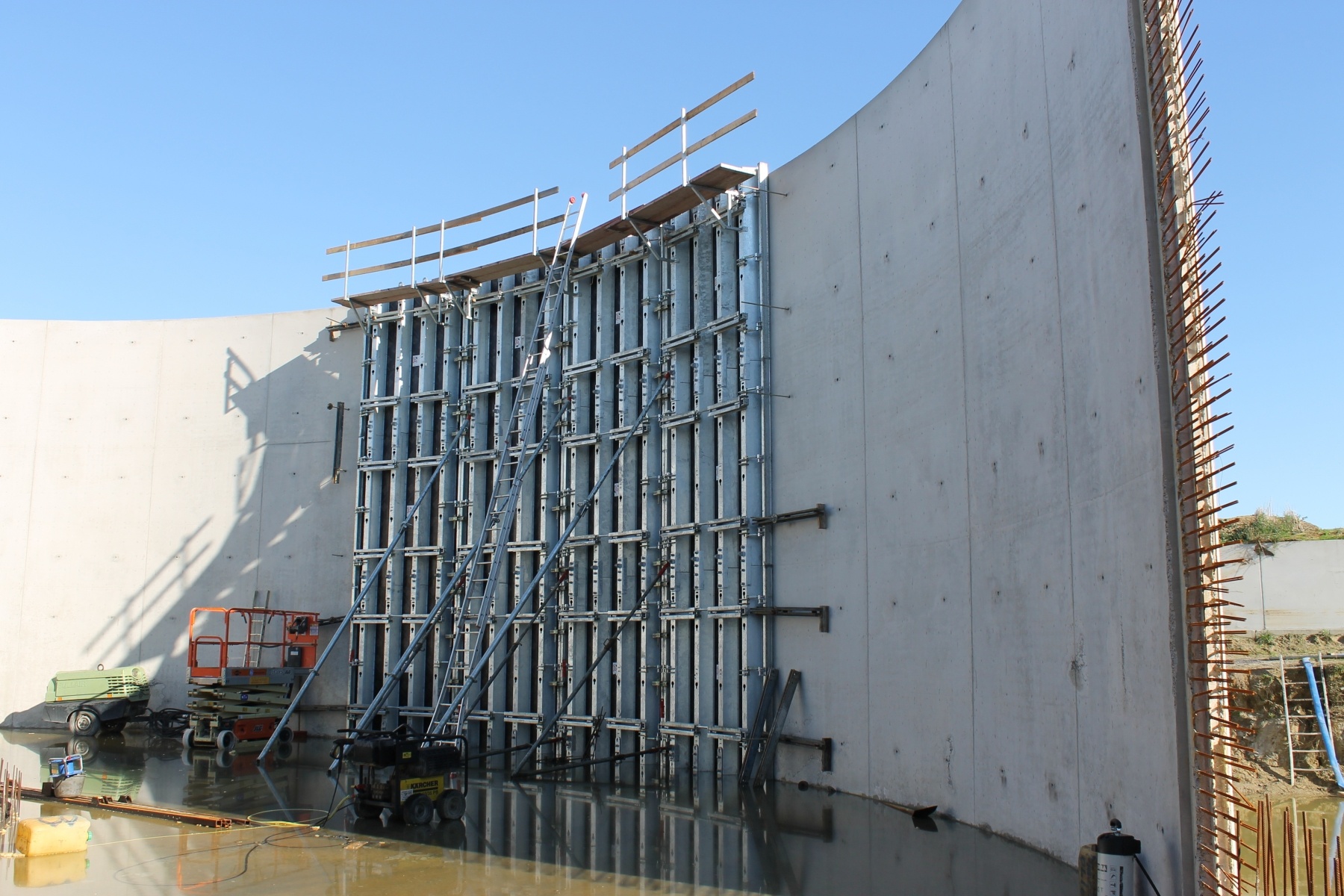

Any circular wall with a minimum radius of 3m can be cast by using this adjustable and quick to fit circular shuttering system.

This adjustable shuttering system is suitable to be used on every site where circular concrete walls need to be poured. Adjusting the radii is easy and simple which makes Conflex a cost-effective system. Through total quality management, in design, production and logistics, we guarantee a permanent high quality.

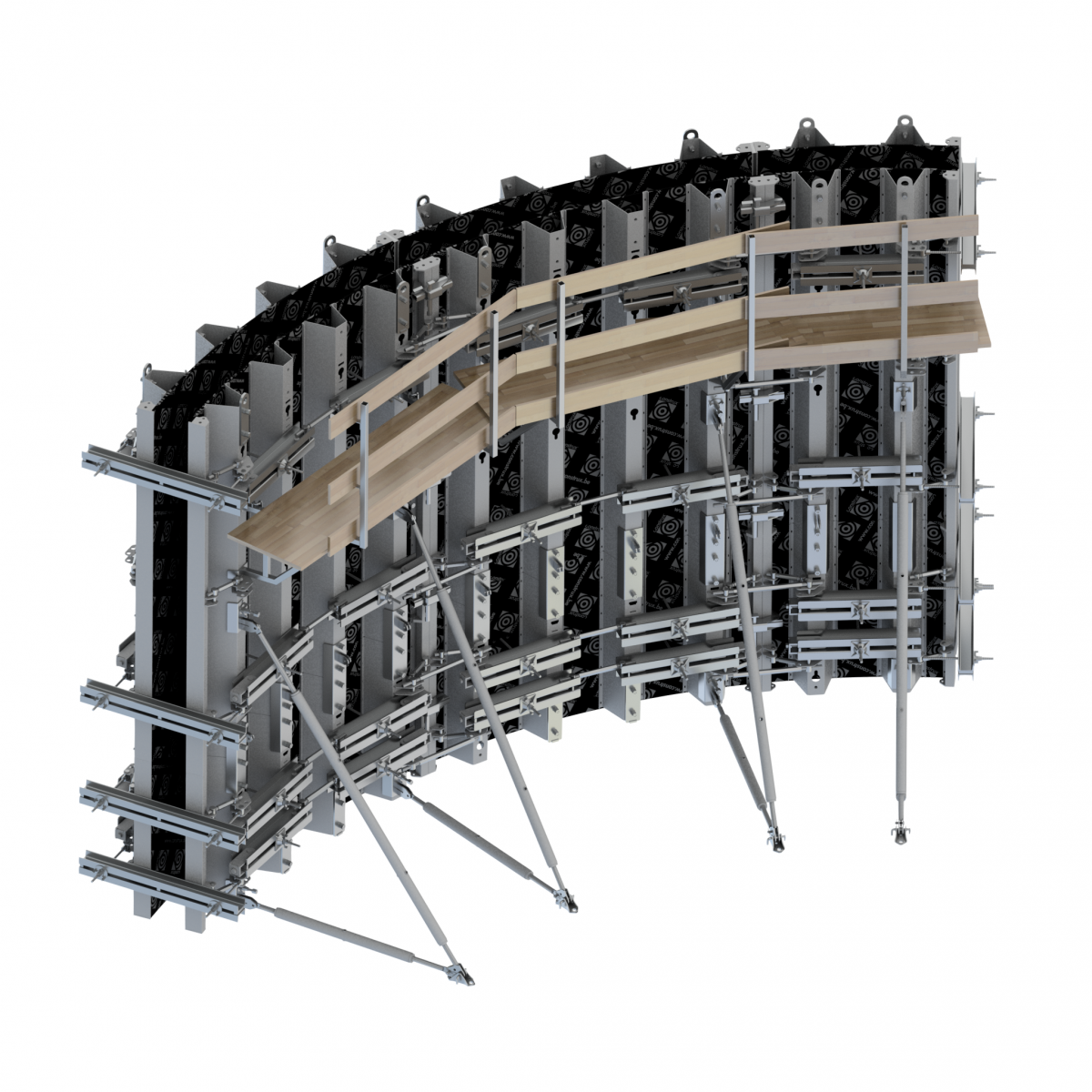

Composition of the Conflex panels:

  • Galvanized steel side profiles
  • 18mm plywood with a 220g/m² phenol coating
  • Plywood screwed from behind

Requirements of the Conflex system:

  • Rigid, solid, easy and ergonomic
  • Designed and calculated according to applicable standards
  • In-house production, controlled and certified

Spezifikationen des Conflex Systems:



3 panel heights

  • (330cm, 270cm und 120cm) each with 2 widths for the inside panels (240cm und 126cm)as well as for the outside panels (250cm und 130cm).
  • Panel heights are identical to the panel heights of the MF80 wall formwork, so nicely aligned joints will appear on the concrete surface when using Conflex and MF80.
  • Panels have integrated compensation walers which serve to connect the tie bars
  • The radii can be adjusted by using the spindles on the panels
  • Accessories such as props, stop-ends and corbels can be fitted to the outside steel profiles
